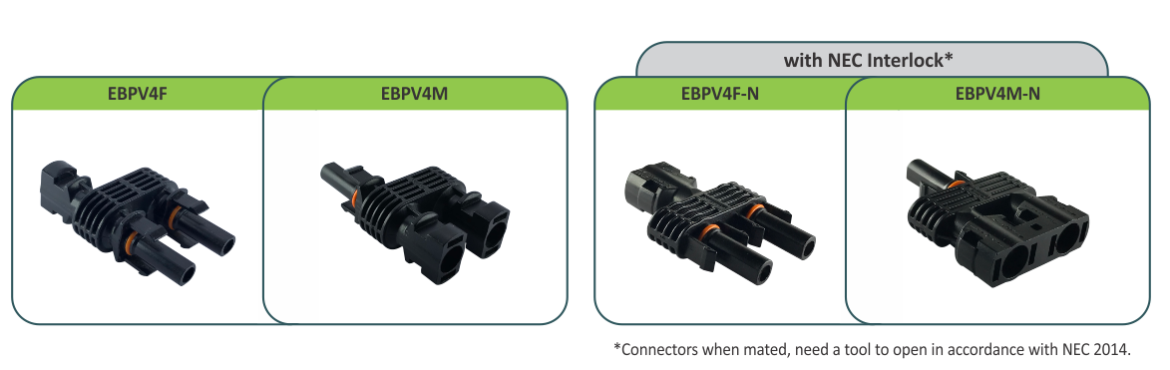

elmex PV Solar Branch connectors EBPV4M, EBPV4F, EBPV4M-N & EBPV4F-N are applicable for parallel connection with PV straight male or female connectors depending on on-site application. Branch connectors have 3 branches, 2 for inputs either male or female & 1 for output either male or female. These connectors are constructed using flame retardant thermoplastic suitable for exposure to UV rays & for application in PV power generation system. When mated, they can be disconnected with the use of elmex make open end spanner.elmex branch connectors have mating compatibility not only with elmex straight connectors but also with straight connectors of leading International makes having similar construction.
|
Description
|
Specification
|
|
Rated Voltage
|
1000V / 1500V DC
|
|
Rated Current
|
25A (2.5 mm²), 30A (4.0 mm², 6.0 mm²)
|
|
Test Voltage
|
6kV (1000V) / 8kV (1500V)
|
|
Degree of Protection
|
IP 68
|
|
Contact Material
|
Copper with Tin Plating
|
|
Ambient Temperature
|
-40° C to +85° C
|
|
Max. Operating Temp.
|
+110° C
|
|
Safety Class
|
II
|
|
Contact Resistance
|
< 0.5mΩ
|
|
Insertion Force
|
≤ 50 N
|
|
Withdrawal Force
|
≥ 50 N
|
|
Locking System
|
Snap In
|
