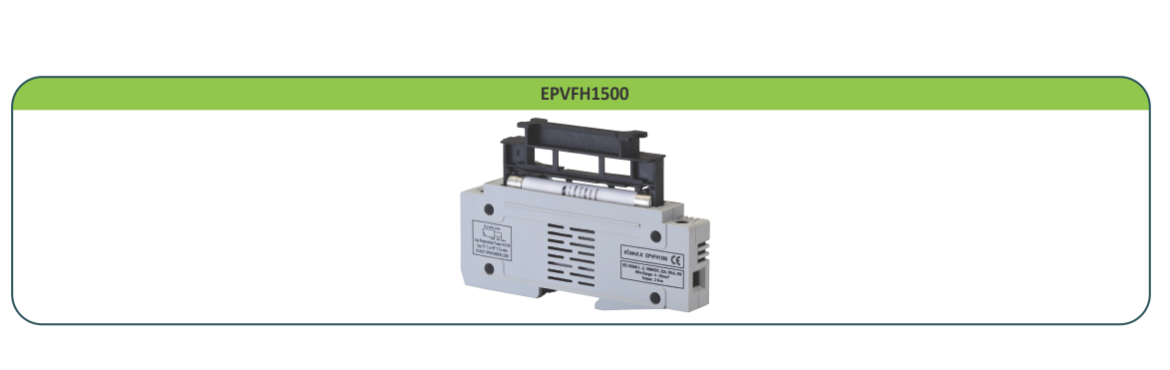

elmex PV Solar Fuse Terminal Block EPVFH1500 is suitable for photovoltaic application & applicable for string protection. It is designed for use in connection for photovoltaic devices like DC and AC Distribution Box, Inverter , String Combiner Box, etc. which is used for rooftop or ground mounted projects. The fuse terminal block is constructed as per standard IEC 60269-1 and are suitable for cylindrical gPV fuse size ø 10 X 85 mm.
|
Description
|
Specifications
|
|
Rated Voltage
|
1500V DC
|
|
Rated Current
|
32 A
|
|
Degree of Protection
|
IP 20
|
|
Rated Cross Section
|
4.0 - 25.0 mm²
|
|
Rated Torque
|
3.2 Nm
|
|
Dimensions ( W x H x P )
|
127 mm x 55 mm x 22 mm
|
|
Mounting Channel
|
CHK / CHKS
|
|
Standard Box Packing
|
6 Nos.
|
Note: It is recommended to usegPV (cylindrical) fuse of ø 10 X 85 mm dimension.
elmex
elmex gPV Fuse Link suitable for 1500V DC photovoltaic applications.
|
Description
|
Specification
|
|
Rated Voltage
|
1500V DC
|
|
Rated Current
|
15A & 30A
|
|
Type
|
gPV (Cylindrical)
|
|
Test Voltage
|
ø 10 X 85 mm
|
|
Testing Standard
|
IEC 60269-6
|
