End Plates:-

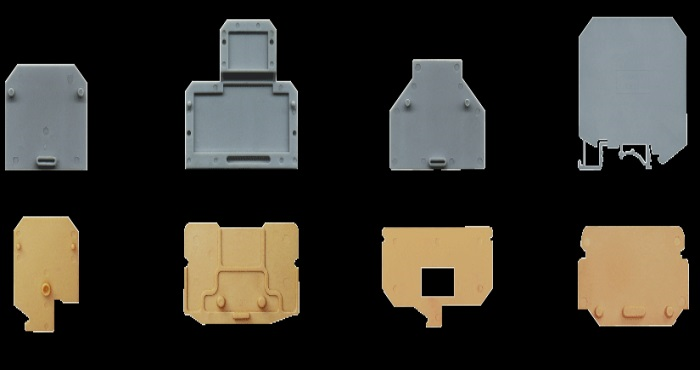

End plates are used to insulate a stack of terminal blocks. they have same profile as that of the terminal block and are available in different colours to match the colour of the terminal block. For terminal blocks made using Polyamide 6,6 housing, the end plates are "snap-on" type i.e. they get press fitted on the terminal block side whereas in case of Melamine terminal blocks, the end plate require support by end clamps.

Certain terminal blocks are so designed that they have both the sides closed and hence it is not required to mount on end plate at the end of the stack. However for the other terminal blocks with their one side open, it is normal practice to mount the end plate at the end of the stack to insulate the live parts as a safety measure against an electric shock hazard.

Barrier Plates/ Partition Plates:-

Barrier plates/ Partition plates are used to serve one or more processes:-

To increase clearance and creepage distances in certain applications
To provide separation between terminal blocks
To readily differentiate stacks of terminal groups

End Plate

Type

Suitable for Terminal Type

DCEP

DCDT 4

DEP2.5

DCT 2.5N

DEP4N

DCT 4N

DFEP

DCF 4, DCF 4A, DCF 4D

DMEP2.5P4

DMCT 2.5P4

DMP2.5

DCT 2.5 1X2, DCT 2.5 2X2, DET 2.5-1x2, DET 2.5-2x2

DP3D

DU3D 4

DPDD 2.5

DSDD 2.5, DSDD 2.5 CA1 , DSDD 2.5 CC2, DSDD2.5 CA1

DPDT2.5

DSDT 2.5, DSDT 2.5WOSL

DPMDT2.5

DSDT 2.5-2x2

DPSD

DUSD 4

DSDDM2.5EP

DSDDM 2.5

DSEP 8

DS8L P16, DS8L P32

DSEP10

DSET 10, DST 10, test-2810

DSEP16

DST 16

DSEP2.5

DSDPT 2.5, DSET 2.5, DSET 2.5-1x2, DSET 2.5-2x2, DST 2.5

DSEP3

DS3L 2.5

DSEP4

DSET 4, DST 4

DSEP6

DSET 6, DST 6

DSEPDT6

DSCDT 6, DSCDT 6 - 4W, DSCT 6

DSMP 2.5 1x2

DST 2.5 1x2, DST2.5-1X2NV

DSMP 4 1x2

DST 4-1x2, DST 4-2x2, DST 6-1x2, DST10-1X2

DSMP16-1X2

DST 16-1X2, DST16-1X2

DSMP2.5 2x2

DST 2.5 2x2, DST2.5-2X2NV

DSMP2.5-2C1P

DST 2.5 - 2C1P

DSMP2.5-2C2P

DST 2.5 - 2C2P

DUTKD4EP

DUTKD2.5, DUTKD2.5TSWS, DUTKD2.5WS, DUTKD4, DUTKD4TS, DUTKD4TSWS, DUTKD4WS

EP185

CST 185

EP70

CST 70

EPA100

PAT 100, PAT 150, PAT 250

EPA30

PAT 30

EPB M4

PBT M4

EPBM4

PBT M3, PBT M4

EPD4

CATD M4

EPDD

CUDD 4, CUDD 4S, KU2D 4, KU2D 4S

EPF

KUF 10, KUF 10A, KUF 10D

EPFH

KUFH 4, KUFH 4A, KUFH 4D

EPLD4

CLTD M4, CLTDM4NV

EPM

CET 4

EPMN

NET 4

EPP

PET 4

EPS4

CABT M4, CAT M3, CAT M4, CAT M5, CBT M4, CBT M5, CBT M6

EPS5/6

CBT 100, CBT M6S1

EPSL

CSLT 1

EPT

CST 25

EPTD

CSTD 6

EPX

CST 10, CST 2.5, CST 2.5WS, CST 6, CST 6WS, CUT 10, CUT 4, CUT 6

EPY

CST 16

EPZ

CST 35

ES2

SUT 1.5

ES4

SUT 4

KIEP

KITD 4

KPD5

KBDT5

KPDD

ETDD4N, KUDD 4, KUDD 4 CA1, KUDD 4 CA2, KUDD 4 CC1, KUDD 4 CC2, KUDD 4 D, KUDD 4 D1, KUDD 4 MOV, KUDD 4R

KPDDN

KUDD 4N, KUDD4NCC1, KUDD4NSH

KPDS

KUPDS 6

KPLD4

KLTD M4, KLTD M4 - 2W, KLTDM4NV

KPM4

KUT4 - 1x2, test-final

KPMD4

KUDT4-2x2, KUT4 - 2x2, testing-pari28

KPNS

CSTM 2.5, CUTM 2.5, jhgjh, KUT 2.5, KUTM 2.5, Test 1, testkaqu, testkau, testpanna, testpro, vfdvdvfdvdv

KPPDS

KUPTD 6, KUPTD 6-S, KUPTD 6S

KPS100

KBT 100, TEST

KPS4

KABT M3, KABT M4, KABTM5, KAT M3, KAT M3E, KAT M4, KAT M4E, KAT M5, KBT M4, KBT M4E, KBT M5-15, KBT M5E, KBT M6, KFTM6

KPSD

KUTSD 6, KUTSD 6 - 10 WAY, KUTSD 6 - 2 WAY, KUTSD 6 - 7 WAY, KUTSD6NV, test-p1

KPSD4

KPCH 6, KPCH4, KUDT 6, KULTD 4, KULTD 4WS, testing-final-offline

KPSL

KULT 1, KULT 4, KULT1NV, KULT6

KPSLD

KULTD 6, KULTD 6 - 4 WAY, KULTD6

KPT

KUT 25

KPTD

KUTD 10, KUTD10WS

KPX

KST 4UWS, KUT 10, KUT 4, KUT 6, KUT10U, KUT4U, testpanna, testpro

KPXN

KUT 10N, KUT 2.5N, KUT 4N, KUT 6N, KUT4NTCE, KUT4NTCJ, KUT4NTCK, KUT4NTCT

KPY

KUT16

KSP6WS

KST 6WS, testpanna

LQEP2.5

LQN2.5

MEP 1.5

MCT 1.5, test1111

MEP2.5

MCT 2.5, MCT 2.5 P4

MEP2.5MC

MCT 2.5MC

MEP4

MCT 4, MCT 4P4

MP1

MBT 4

MQEP2.5-2T+E

MQ2.5-2T+E, MQ2.5-2T-E, MQEP2.5-2T+E

OEP 25

OAT 25

OEP2.5

jhgjh, OAT 2.5, testkaqu, testkau, testpro, vfdvdvfdvdv

OEP6

OAT 6

OEP6DTS

OAT 6DTS - 2 WAY, OAT6DTS

OEP6T

OAT 6T

SEP10

SCT 10

SEP2.5

SCT 2.5, SCT 2.5MC

SEP4

SCT 4

SEP6

SCT 6

SFEP 6

SCF 6

SQEP1.5

PQ1.5, SQ1.5

SQEP2.5

PQ2.5, SEQ2.5, SQ2.5

SQEP4

PQ4, SQ4

SQEP6

PQ6

UP TWIN

UBT 4 TWIN

UPDD

UBDD 4

UPNS

jhgjh, UBT 2.5, vfdvdvfdvdv

UPX

testkau, UBT 10, UBT 4, UBT 6

Partition Plate Without Foot

Type

Suitable for Terminal Type

BPX

CST 10, CST 2.5, CST 2.5WS, CST 6, CST 6WS

BPY

CST 16

BPZ

CST 35

CBX

CUT 10, CUT 4, CUT 6

KBM

DBK 2.5-10W, DBM 4-10W, jhgjh, KUT 2.5, KUTM 2.5, test-p1, testkau

KBT

DBK 150-25 1X2, DBK 150-25 1X4, DBK 50-25 1x8, KUT 25, vfdvdvfdvdv

KBX

DBK 1X2, DBK 1X4, DBK 1X8, DBK 8, DFBK 12, FDBK 1X4, FDBK 1x6, FDBK 1X8, FDBK 8, KST 4UWS, KUT 10, KUT 4, KUT 6, KUT10U, KUT4U

KBY

DBK 150-16 1X2, DBK 150-16 1X4, DBK 150-16 1x8, KST 6WS, KUT16 , vfdvdvfdvdv

Partition Plate With Foot

Type

Suitable for Terminal Type

BPSCA

KULTD6

KBFA

KULTD6

KBXF

CST 10, CST 2.5, CST 2.5WS, CST 6, CST 6WS, CSTM 2.5, CUT 10, CUT 4, CUT 6, CUTM 2.5, DBD 16, DBD 35, DBK 150-M6C 1X2, DBK 150-M6C 1X4, DBK 1X2, DBK 1X4, DBK 1X8, DBK 2.5-10W, DBK 8, DBM 4-10W, DFBK 12, EBT 2.5, EBT 4, EBT 6, ET 10, ET 4, ET 6, FDBK 1X4, FDBK 1x6, FDBK 1X8, FDBK 8, KABT M4, KAT M3, KAT M3C, KAT M3E, KAT M4, KAT M4C, KAT M4E, KAT M5, KAT M5C, KBT M4, KBT M4C, KBT M4E, KBT M5-15, KBT M5-15C, KBT M5E, KBT M6, KBT M6C, KST 4UWS, KST 6WS, KUDT 4, KUT 4, KUT 6, KUTM 2.5, LQN2.5, test-p1, UBT 10, UBT 2.5, UBT 4, UBT 6

KBZF

CABT M4, CAT M3, CAT M4, CBT M5, CBT M6, CBT M6S1, CSLT 1, CST 16, CST 25, CUDD 4, CUDD 4S, DBK 150-16 1X2, DBK 150-16 1X4, DBK 150-16 1x8, DBK 150-25 1X2, DBK 150-25 1X4, DBK 50-25 1x8, DUTKD2.5, DUTKD2.5TSWS, DUTKD2.5WS, DUTKD4, DUTKD4TS, DUTKD4TSWS, DUTKD4WS, EBT 4TWIN, ET 16, ET 35, KUDDF 4, KUDDF 4D, KUDDF4AD*, KUDF 4, KUDF4AD*, KUDFAD, KUDT 6, KUF 10, KUF 10A, KUF 10D, KUFH 4, KUFH 4A, KUFH 4D, KULT 1, KULT 4, KULT1NV, KULT6, KULTD 4, KULTD 4WS, KUPDS 6, KUT 25, KUT 35, KUT16 , OAT 6T, testing-final-offline

KNBF 2.5/10

ETN 10, ETN 4, ETN 6, KUDT4-2x2, KUT 10N, KUT 2.5N, KUT 4N, KUT 6N, KUT4 - 1x2, KUT4NTCE, KUT4NTCJ, KUT4NTCK, KUT4NTCT

Barrier Plate

Type

Suitable for Terminal Type

BPA 110

CBT 110, CBT 110 T

BPA 17/25

CBT 170, CBT 170 T, CBT 250, CBT 250 T, CBT 300, CBT 300 T

BPN 185/240

DPBB 185N, DPBB 240

BPN120

DPBB 120, DPBB120CN, test-p1

BPN70

DPBB 50, DPBB 70, DPBB50CN, DPBB70CN

DBF - 1

SCT 2.5, SCT 4

DBF - 2

DSET 2.5, DSET 4, DST 2.5, DST 4, PQ1.5, PQ2.5, PQ4, SEQ2.5, SQ1.5, SQ2.5, SQ4

DBF - 3

DCT 2.5 1X2, DCT 2.5 2X2, DET 2.5-1x2, DET 2.5-2x2, DSDT 2.5, DSET 2.5-1x2, DST 2.5 1x2, DST 4-1x2, DST2.5-1X2NV, PQ6, SCT 10, SCT 6

DBF - 4

DSET 10, DSET 2.5-2x2, DSET 6, DST 10, DST 16, DST 2.5 2x2, DST 4-2x2, DST 6, DST2.5-2X2NV, OAT6DTS

DBF - 5

DSCDT 6, DSCT 6, DSDT 2.5-2x2, DST 6-1x2, DST10-1X2

DBF-6

KULTD6, MQ2.5-2T+E, MQ2.5-2T-E, MQEP2.5-2T+E
