Group Markers and Warning Labels:-

Group Markers are used for providing common marking for a group of terminal blocks and are mounted using a marking label holder, fixed on end clamp for group marking.

The following types of Group Markers are available depending on marking requirement and type of DIN rail used:

SCUN MLH: Suitable for Group Marking of terminal blocks mounted on DIN rail types TS35/TS 32 (Top Hat section/ G Section)
SCKN MLH: Suitable for Group Marking of terminal blocks mounted on DIN rail type TS 35.
DCKN MLH: Specially designed for Group Marking of screw-less terminal blocks mounted on DIN rail type TS 35 (Top Hat Section)
GMC: Suitable for Group marking of terminal blocks mounted on DIN rail type TS 32.

Warning labels are used to indicate safety precautions and are available in yellow colour with printing in red colour to show warning signs.

Marking labels:-

Marking labels are used for identification of circuit connections. Marking of terminals helps in easy identification and quick maintenance. Marking labels are made of Polyamide in white colour and pre-printed with black indelible ink. They are used to serve different purposes like alpha-numeric identification required for accurate wiring and trouble shooting. Marking labels are available in strips containing 10 markers.

They are also available in form of a card which consists of 10 such strips. Marking label strip can be snapped on a stack of 10 terminals together. They are available in different sizes with option of either vertically printed numbers or horizontally printed numbers.

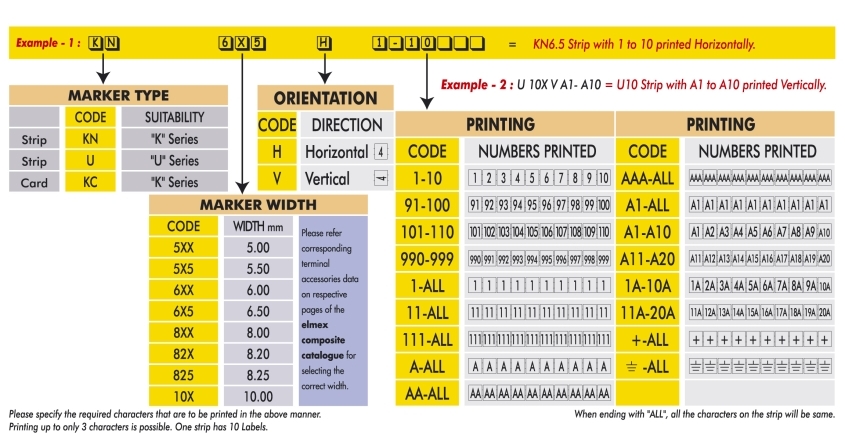

Ordering Guidelines for elmex marking labels are given below for ready reference

Warning Label

Type

Suitable for Terminal Type

WARNING LABEL WL10

CST 10, CUT 10, KUT10U

WARNING LABEL WL16

CST 16, CST 25, KUT 25, KUT16

WARNING LABEL WL2.5

CST 2.5WS, CUT 4, CUTM 2.5, KUT 2.5N, KUTM 2.5, testkau, testpro

WARNING LABEL WL35

CST 35, KUT 35

WARNING LABEL WL4

CST 2.5, KST 4UWS, KUT 4, KUT 4N, KUT4U

WARNING LABEL WL6

CST 6, CST 6WS, CUT 6, KST 6WS, KUT 6, KUT 6N

Marking Label

Type

Suitable for Terminal Type

Label KN 5.08

DPSC 5.08 (2W to 24W), Test 1

Label KN 7.5

DPSC 7.5 (2W to 8W)

LABEL KN10

CBT 110, CBT 110 T, CBT 170, CBT 170 T, CBT 250, CBT 250 T, CBT 300, CBT 300 T, CSLT 1, CST 10, CST 16, CUT 10, DBK 1X2, DBK 1X4, DBK 1X8, DBK 8, DFBK 12, DMCT 2.5P4, DPBB 120, DPBB 185N, DPBB 240, DPBB 50, DPBB 70, DPBB50CN, DPBB70CN, DSET 10, DST 10, DST10-1X2, ET 10, ETN 10, KAT M4C, KAT M5C, KBT M4C, KNL 35, KULT 1, KULT1NV, KUT 10N, KUT10U, LPT 225, LPT 325, MCT 2.5 P4, SCT 10, test-2810

LABEL KN12

CST 25, DBD 16, DBD 35, DBK 150-16 1X2, DBK 150-16 1X4, DBK 150-16 1x8, DBK 150-25 1X2, DBK 150-25 1X4, DBK 150-M6C 1X4, DBK 50-25 1x8, DST 16, DST 16-1X2, DST16-1X2, DTB 35 - 10, DTB 35 - 10 x 4, ET 16, ET 35, KBT M5-15C, KFTM6, KUF 10, KUF 10A, KUF 10D, KUT 25, KUT16 , LPT 235, LPT 335, MCT 2.5 P4, MCT 4P4, SCF 6, SPT 120, SPT 120 XL, SPT 150, SPT 150 XL, SPT 185, SPT 185 XL, SPT 240, SPT 240 XL, SPT 300, SPT 300 XL, SPT 35, SPT 35 XL, SPT 70, SPT 70 XL, SPT 95, SPT 95 XL, SPTRTW 70

LABEL KN17

CST 185, CST 70, DST 35, ET 50, KBT M6C, KUT 35, KUT 50, KUT 95, OAT 25

LABEL KN5

DCT 2.5 1X2, DCT 2.5 2X2, DCT 2.5N, DET 2.5-1x2, DET 2.5-2x2, DSDDM 2.5, DSDPT 2.5, DSDT 2.5, DSDT 2.5-2x2, DSDT 2.5WOSL, DSET 2.5, DSET 2.5-1x2, DSET 2.5-2x2, DST 2.5, DST 2.5 - 2C1P, DST 2.5 - 2C2P, DST 2.5 1x2, DST 2.5 2x2, DST 4-1x2, DST2.5-1X2NV, DST2.5-2X2NV, DUTKD2.5, DUTKD2.5TSWS, DUTKD2.5WS, KUT 2.5N, KUTM 2.5, LQN2.5, MCT 1.5, PQ2.5, SCT 2.5, SEQ2.5, SQ2.5, SUT 1.5, Test 1

LABEL KN5.5

CATD M4, CH 4MOV, CH 4R1, CH4, CH4D1, CLTD M4, CLTDM4NV, CST 35, CSTM 2.5, CUDD 4, CUDD 4S, CUTM 2.5, DBK 2.5-10W, DBM 4-10W, DBP 4-10W, DCT 4N, DS3L 2.5, DSDD 2.5, DSDD 2.5 CA1 , DSDD 2.5 CC2, DSDD2.5 CA1 , DSET 4, DST 4, DST 4-1x2, DST 4-2x2, DU3D 4, DUSD 4, DUTKD4, DUTKD4TS, DUTKD4TSWS, DUTKD4WS, ET 4, ETDD4N, ETN 4, KITD 4, KLTD M4, KLTD M4 - 2W, KLTDM4NV, KPCH4, KU2D 4, KU2D 4S, KUDD 4, KUDD 4 CA1, KUDD 4 CA2, KUDD 4 CC1, KUDD 4 CC2, KUDD 4 D, KUDD 4 D1, KUDD 4 MOV, KUDD 4N, KUDD 4R, KUDD4NCC1, KUDD4NSH, KUDT4-2x2, KULT 4, KULTD 4, KULTD 4WS, KUT 2.5, KUT 4N, KUT 6N, KUT4 - 1x2, KUT4 - 2x2, KUT4NTCE, KUT4NTCJ, KUT4NTCK, KUT4NTCT, KUT4U, MCT 2.5, MCT 2.5MC, MQ2.5-2T+E, MQ2.5-2T-E, MQEP2.5-2T+E, PET 4, PQ4, SCT 2.5MC, SCT 4, SET 4, SQ4, SUT 4, test-final, test1111, testing-final-offline, testing-pari28

LABEL KN6.5

CAT M3, CBT M4, CBT M5, CET 4, CST 2.5, CST 2.5WS, CST 6, CST 6WS, CSTD 6, CUT 4, CUT 6, DBK 150-M6C 1X2, DFBK 12, DS8L P16, ET 6, FDBK 1X4, FDBK 1x6, FDBK 1X8, FDBK 8, KABT M3, KABT M4, KABTM5, KAT M3, KAT M3C, KAT M3E, KAT M4, KAT M4C, KAT M4E, KAT M5, KBT 100, KBT M4, KBT M4E, KBT M5-15, KBT M5E, KBT M6, KBT100C, KNL 16, KNL 4, KST 4UWS, KUDT 4, KUT 4, MCT 4, NET 4, OAT 2.5, PS 8M (2W to 10W), Test 1

LABEL KN8

CABT M4, CAT M4, CAT M5, CBT 100, CBT M6, CBT M6S1, DCDT 4, DCF 4, DCF 4A, DCF 4D, DS8L P32, DSCDT 6, DSCDT 6 - 4W, DSCT 6, DSET 6, DST 6, DST 6-1x2, ETN 6, KBDT5, KNL 16, KPCH 6, KST 6WS, KUDDF 4, KUDDF 4D, KUDDF4AD*, KUDF 4, KUDF4AD*, KUDFAD, KUDT 6, KULT6, KULTD 6, KULTD 6 - 4 WAY, KULTD6, KUPDS 6, KUPTD 6, KUPTD 6-S, KUPTD 6S, KUT 6, KUTD 10, KUTD10WS, KUTSD 6, KUTSD 6 - 10 WAY, KUTSD 6 - 2 WAY, KUTSD 6 - 7 WAY, KUTSD6NV, PAT 100, PAT 150, PAT 250, PAT 30, PQ6, SCT 6

LABEL KN9

KUFH 4, KUFH 4A, KUFH 4D, OAT 6, OAT 6DTS - 2 WAY, OAT 6T, OAT6DTS

LABEL U10

DPBB120CN, UBT 10

LABEL U6

EBT 2.5, EBT 4, EBT 4TWIN, MBT 4, UBDD 4, UBT 2.5, UBT 4, UBT 4 TWIN

LABEL U8

EBT 6, UBT 6

LABEL U8.25

UBDF 4, UBDF 4A, UBDF 4D

Label KN 5.08

DPSC 5.08 (2W to 24W), Test 1

LABEL KN10

LABEL KN12

LABEL KN17

CST 185, CST 70, DST 35, ET 50, KBT M6C, KUT 35, KUT 50, KUT 95, OAT 25

LABEL KN5

LABEL KN5.5

LABEL KN6.5

LABEL KN8

LABEL KN9

KUFH 4, KUFH 4A, KUFH 4D, OAT 6, OAT 6DTS - 2 WAY, OAT 6T, OAT6DTS

LABEL U10

DPBB120CN, UBT 10

LABEL U5

UTSC5.08

Group Marking Carrier

Type

Suitable for Terminal Type

DCKNMLH

DBD 16, DBD 35, DBK 50-25 1x8, DCDT 4, DCT 2.5 1X2, DCT 2.5 2X2, DCT 2.5N, DCT 4N, DET 2.5-1x2, DET 2.5-2x2, DMCT 2.5P4, DSCDT 6, DSCDT 6 - 4W, DSCT 6, DSDT 2.5, DSDT 2.5-2x2, DSDT 2.5WOSL, DSET 4, DSET 6, DST 2.5, DST 2.5 - 2C1P, DST 2.5 - 2C2P, DST 2.5 1x2, DST 2.5 2x2, DST 4, DST 4-1x2, DST 6, DST2.5-1X2NV, DST2.5-2X2NV, EBT 2.5, EBT 4, EBT 4TWIN, ET 4, FDBK 1x6, KBT100C, KST 4UWS, KST 6WS, KUDD 4 D, KUDDF 4D, KUDF 4, KUDF4AD*, KUDFAD, KUDT 4, KUDT4-2x2, KULTD 6, KUPTD 6-S, KUT 2.5, KUT 4, KUT 6, KUT4 - 1x2, KUT4 - 2x2, KUT4U, KUTM 2.5, KUTSD 6, KUTSD6NV, LQN2.5, PQ1.5, PQ2.5, PQ4, PQ6, SCT 2.5, SCT 4, SCT 6, SEQ2.5, SQ1.5, SQ2.5, SQ4, Test 1, test-2810, testing-final-offline, UBT 2.5, UBT 4, UBT 4 TWIN, UBT 6

GMC

CSTD 6, CUT 4, CUT 6, CUTM 2.5

SCKNMLH

DBD 16, DBD 35, DBK 50-25 1x8, DCDT 4, DCT 2.5 1X2, DCT 2.5 2X2, DCT 2.5N, DCT 4N, DET 2.5-1x2, DET 2.5-2x2, DMCT 2.5P4, DSCDT 6, DSCDT 6 - 4W, DSCT 6, DSDT 2.5, DSDT 2.5-2x2, DSDT 2.5WOSL, DSET 4, DSET 6, DST 2.5, DST 2.5 - 2C1P, DST 2.5 - 2C2P, DST 2.5 1x2, DST 2.5 2x2, DST 4, DST 4-1x2, DST 6, DST2.5-1X2NV, DST2.5-2X2NV, EBT 2.5, EBT 4, EBT 4TWIN, ET 4, FDBK 1x6, KBT100C, KST 4UWS, KST 6WS, KUDDF 4D, KUDF 4, KUDF4AD*, KUDFAD, KUDT 4, KUDT4-2x2, KULTD 6, KUPTD 6-S, KUT 2.5, KUT 4, KUT 6, KUT4 - 1x2, KUT4 - 2x2, KUT4U, KUTM 2.5, KUTSD 6, KUTSD6NV, LQN2.5, PQ1.5, PQ2.5, PQ4, PQ6, PS 8M (2W to 10W), SCT 2.5, SCT 4, SCT 6, SEQ2.5, SQ1.5, SQ2.5, SQ4, Test 1, test-2810, testing-final-offline, UBT 2.5, UBT 4, UBT 4 TWIN, UBT 6, UTSC5.08

SCUNMLH

CST 2.5, CST 2.5WS, CST 6, CST 6WS, CSTD 6, CSTM 2.5, CUT 4, CUT 6, CUTM 2.5, DBD 16, DBD 35, DBK 50-25 1x8, DCDT 4, DCT 2.5 1X2, DCT 2.5 2X2, DCT 2.5N, DCT 4N, DET 2.5-1x2, DET 2.5-2x2, DMCT 2.5P4, DSCDT 6, DSCDT 6 - 4W, DSCT 6, DSDT 2.5, DSDT 2.5-2x2, DSDT 2.5WOSL, DSET 4, DSET 6, DST 2.5, DST 2.5 - 2C1P, DST 2.5 - 2C2P, DST 2.5 1x2, DST 2.5 2x2, DST 4, DST 4-1x2, DST 6, DST2.5-1X2NV, DST2.5-2X2NV, EBT 2.5, EBT 4, EBT 4TWIN, ET 4, FDBK 1x6, KBT100C, KST 4UWS, KST 6WS, KUDD 4 D, KUDDF 4D, KUDF 4, KUDF4AD*, KUDFAD, KUDT 4, KUDT4-2x2, KULTD 6, KUPTD 6-S, KUT 2.5, KUT 4, KUT 6, KUT4 - 1x2, KUT4 - 2x2, KUT4U, KUTM 2.5, KUTSD 6, KUTSD6NV, LQN2.5, PQ1.5, PQ2.5, PQ4, PQ6, PS 8M (2W to 10W), SCT 2.5, SCT 4, SCT 6, SEQ2.5, SQ1.5, SQ2.5, SQ4, Test 1, test-2810, testing-final-offline, UBT 2.5, UBT 4, UBT 4 TWIN, UBT 6, UTSC5.08

DCKNMLH

SCKNMLH

DBD 16, DBD 35, DBK 50-25 1x8, DCDT 4, DCT 2.5 1X2, DCT 2.5 2X2, DCT 2.5N, DCT 4N, DET 2.5-1x2, DET 2.5-2x2, DMCT 2.5P4, DSCDT 6, DSCDT 6 - 4W, DSCT 6, DSDT 2.5, DSDT 2.5-2x2, DSDT 2.5WOSL, DSET 4, DSET 6, DST 2.5, DST 2.5 - 2C1P, DST 2.5 - 2C2P, DST 2.5 1x2, DST 2.5 2x2, DST 4, DST 4-1x2, DST 6, DST2.5-1X2NV, DST2.5-2X2NV, EBT 2.5, EBT 4, EBT 4TWIN, ET 4, FDBK 1x6, KBT100C, KST 4UWS, KST 6WS, KUDDF 4D, KUDF 4, KUDF4AD*, KUDFAD, KUDT 4, KUDT4-2x2, KULTD 6, KUPTD 6-S, KUT 2.5, KUT 4, KUT 6, KUT4 - 1x2, KUT4 - 2x2, KUT4U, KUTM 2.5, KUTSD 6, KUTSD6NV, LQN2.5, PQ1.5, PQ2.5, PQ4, PQ6, PS 8M (2W to 10W), SCT 2.5, SCT 4, SCT 6, SEQ2.5, SQ1.5, SQ2.5, SQ4, Test 1, test-2810, testing-final-offline, UBT 2.5, UBT 4, UBT 4 TWIN, UBT 6, UTSC5.08

SCUNMLH
