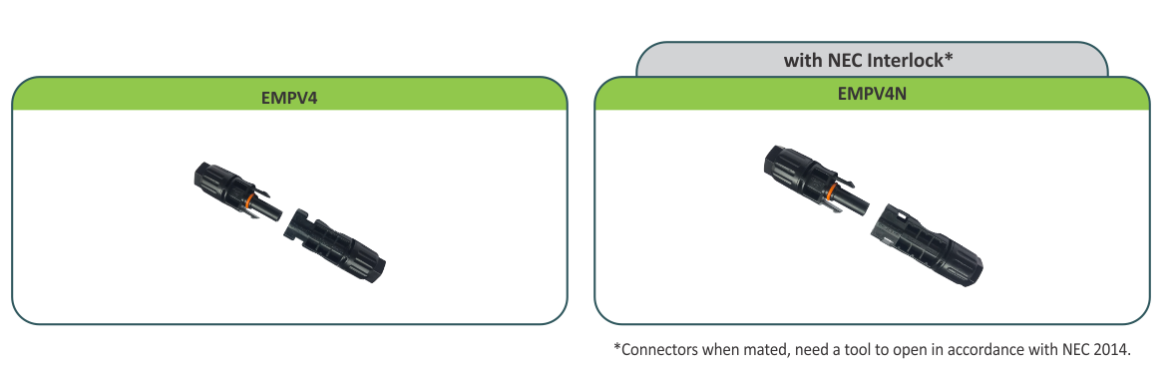

elmex PV Solar Straight connectors EMPV4 & EMPV4N with plug & socket design are constructed using flame retardant engineering thermoplastic suitable for exposure to UV rays & for application in PV power generation system. These connectors incorporate a flexible water tight sealing conforming to IP 68 and are supplied as ‘male (plug)’ & ‘female (socket)’ types to minimize the chance of wrong connections. For proper assembly of individual male & female connectors & for proper functioning of the mated pair, it is necessary that solar cables used are TUV certified as per standard 2Pfg 1169/EN 50618. elmex straight connectors are certified for PV solar cables 2.5, 4.0, 6.0 mm² size, double insulated (Insulation plus black/red sheath) & UV protection (as UV rays tend to damage the connection).
|
Description
|
Specification
|
|
Rated Conductor Size
|
2.5 mm² / 4.0 mm² / 6.0 mm²
|
|
Rated Voltage
|
1000V / 1500V DC
|
|
Rated Current
|
25A (2.5 mm²), 30A (4.0 mm², 6.0 mm²)
|
|
Test Voltage
|
6kV (1000V) / 8kV (1500V)
|
|
Degree of Protection
|
IP 67 / IP 68
|
|
Contact Material
|
Copper with Tin Plating
|
|
Ambient Temperature
|
-40° C to +85° C
|
|
Max. Operating Temp.
|
+110° C
|
|
Safety Class
|
II
|
|
Contact Resistance
|
< 0.5 mΩ
|
|
Insertion Force
|
≤ 50 N
|
|
Withdrawal Force
|
≥ 50 N
|
|
Locking System
|
Snap In
|
