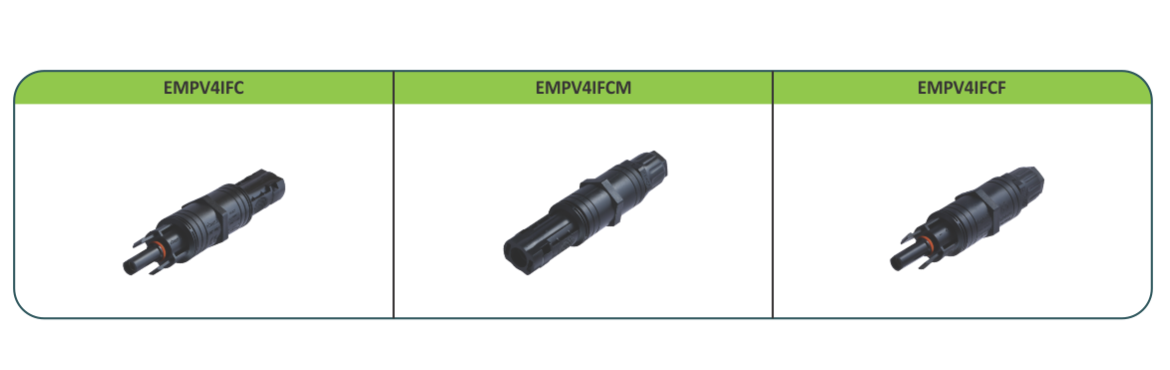

elmex PV Solar Straight Inline fuse connectors EMPV4IFC, EMPV4IFCM & EMPV4IFCF are applicable for Photovoltaic string protection. The variants of these connectors offer users with options of either using a male or female straight connector at one end & cable at the other end or using male/female straight connectors at both the ends for string protection with fuse. elmex straight inline fuse connectors have plug & socket design suitable for 2.5, 4.0, 6.0 mm² size cables & are constructed using fame retardant engineering thermoplastic suitable for exposure to UV rays & for application in PV power generation system. They are suitable for use with gPV (Cylindrical) fuse of ø 10 X 38 mm.
|
Description
|
Specifications
|
|
Rated Voltage
|
1000V DC
|
|
Rated Current
|
15 A
|
|
Test Voltage
|
6 kV
|
|
Degree of Protection
|
IP 68
|
|
Contact Material
|
Copper Alloy with Tin Plating
|
|
Ambient Temperature
|
-45° C to +85° C
|
|
Safety Class
|
II
|
|
Contact Resistance
|
< 0.5mΩ
|
|
Insertion Force
|
<_50 N
|
|
Withdrawal Force
|
>_50 N
|
|
Rated Conductor Size
|
2.5 mm² / 4.0 mm² / 6.0 mm²
|
|
Locking System
|
Snap In
|
elmex
elmex gPV fuse link suitable for 1000V DC photovoltaic applications.
|
Description
|
Specification
|
|
Rated Voltage
|
1000V DC
|
|
Rated Current
|
4, 10, 12, 15, 16, 20, 25, 30 A
|
|
Type
|
gPV (Cylindrical)
|
|
Dimention
|
Ø10 mm x 38 mm
|
|
Testing Standard
|
IEC 60269-6
|
