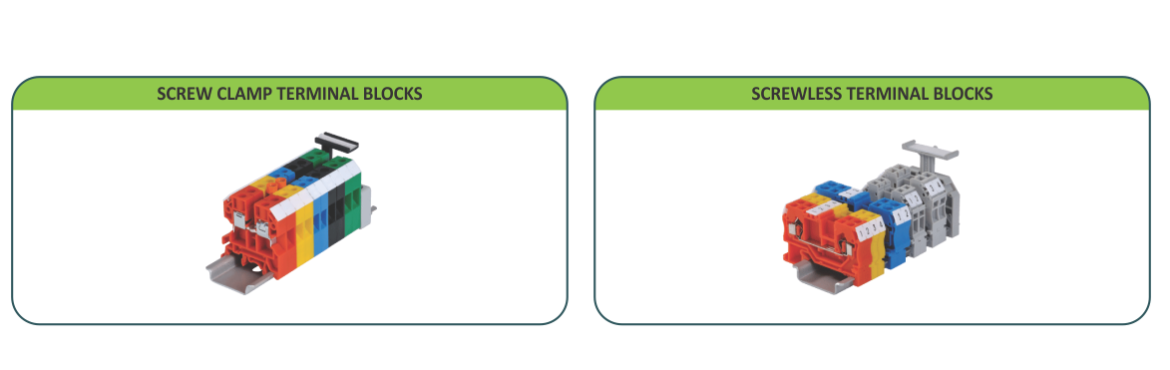

elmex wide range of Terminal Blocks for conductor size ranging from 2.5 to 95 mm² are tested & approved for 1000V DC / 1500V DC and are suitable for use in Solar Photovoltaic Systems. Electrical ratings of these terminal blocks are given below. These terminal blocks have conductor termination by screw-clamp technology or by screwless (spring clamp technology)
|
Description
|
Specifications
|
|
KUT 2.5N
|
1000V DC/24 A/2.5 mm²/0.5 Nm
|
|
KUT 4N
|
1000V DC/32 A/4 mm²/0.6 Nm
|
|
KUT 6N
|
1000V DC/41 A/6 mm²/0.8 Nm
|
|
KUT 10N
|
1000V DC/63 A/10 mm²/1.2 Nm
|
|
KUT 25
|
1000V DC/101 A/25 mm²/2.3 Nm
|
|
KUT35
|
1000V DC/125 A/35 mm²/3 Nm
|
|
KUT 50
|
1000V DC/150 A/50 mm²/8 Nm
|
|
KUT 95
|
1000V DC/232 A/95 mm²/20 Nm
|
|
DST 2.5
|
1000V DC/24 A/2.5 mm²
|
|
DST 2.5 1x2
|
1000V DC/24 A/2.5 mm²
|
|
DST 4
|
1000V DC/32 A/4 mm²
|
|
DST 6
|
1000V DC/41 A/6 mm²
|
|
DST 10
|
1000V DC/57 A/10 mm²
|
|
DST 16
|
1000V DC/76 A/16 mm²
|
|
SCT 2.5
|
1000V DC/24 A/2.5 mm²
|
|
SCT 4
|
1000V DC/32 A/4 mm²
|
|
MCT 2.5
|
1000V DC/24 A/2.5 mm²
|
|
MCT 2.5P4
|
1000V DC/24 A/2.5 mm²
|
|
MCT 4
|
1000V DC/32 A/4 mm²
|
|
DCT 2.5 1x2
|
1000V DC/24 A/2.5 mm²
|
|
DCT 2.5 2x2
|
1000V DC/24 A/2.5 mm²
|
