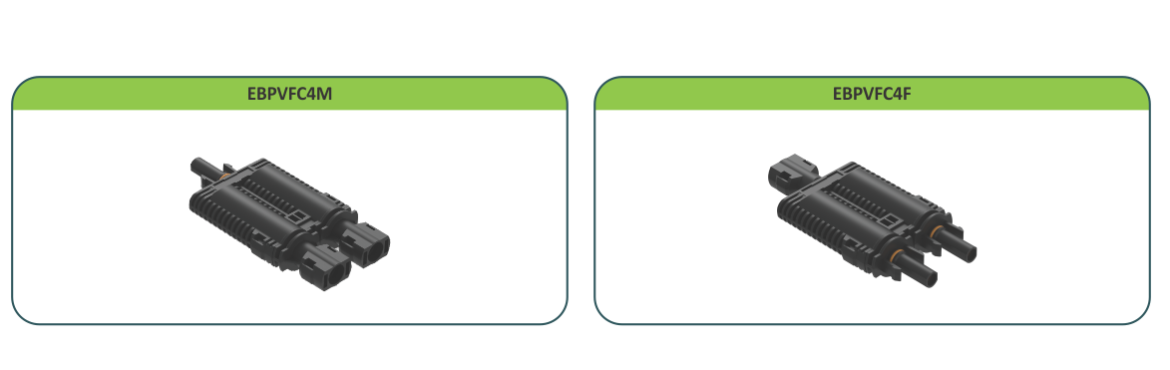

elmex PV Solar Branch Inline fuse connectors EBWFPVM & EBWFPVF are applicable for parallel connection for Photovoltaic string protection depending on on-site application. Branch inline fuse connectors have 3 branches, 2 for inputs either male or female & 1 for output either male or female. These connectors have plug & socket design & are constructed using fame retardant engineering thermoplastic suitable for exposure to UV rays & for application in PV power generation system. elmex PV branch inline fuse connectors are suitable for use with gPV (Cylindrical) fuse of ø 10 X 38 mm.
|
Description
|
Specifications
|
|
Rated Voltage
|
1000V DC
|
|
Rated Current
|
15A
|
|
Test Voltage
|
6 kV
|
|
Degree of Protection
|
IP 68
|
|
Contact Material
|
Copper with Tin Plating
|
|
Ambient Temperature
|
-40° C to +85° C
|
|
Safety Class
|
II
|
|
Contact Resistance
|
< 0.5mΩ
|
|
Insertion Force
|
<_50 N
|
|
Withdrawal Force
|
>_50 N
|
|
Locking System
|
Snap In
|
elmex
elmex gPV fuse link suitable for 1000V DC photovoltaic applications.
|
Description
|
Specification
|
|
Rated Voltage
|
1000V DC
|
|
Rated Current
|
4, 10, 12, 15, 16, 20, 25, 30 A
|
|
Type
|
gPV (Cylindrical)
|
|
Dimension
|
Ø 10 mm x 38 mm
|
|
Testing Standard
|
IEC 60269-6
|
