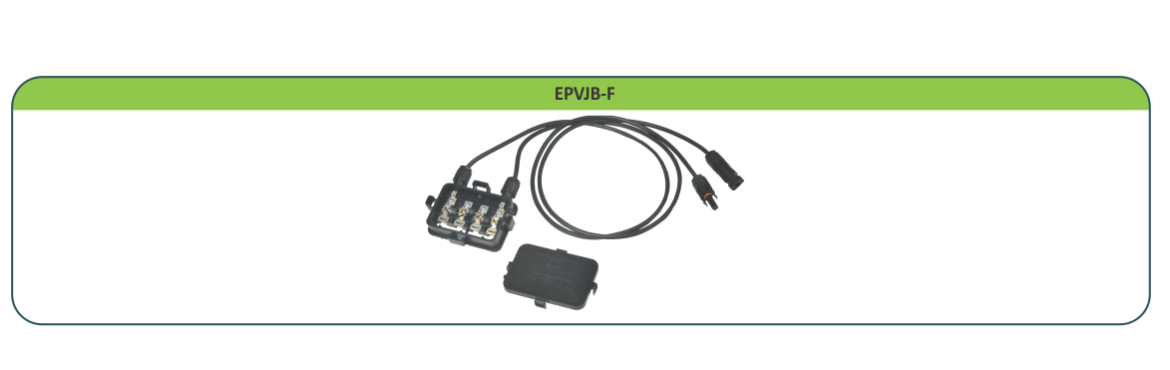

elmex PV Solar 4 - Rail Junction Box EPVJB-F is suitable for electrical connection from PV Crystalline module as a solution for easy & reliable interconnection from PV module to DC / AC converters. It has simple & cost effective assembly designed with snap fit locking arrangement with IP 65 protection sealing requirement for PV industry. The Junction Box is provided with two cables each of 1-meter length, with elmex make straight male & female EMPV4 / EMPV4N connector for simple on-site wiring. PV Junction Box employs fast switching Schottky Diodes with a peak reverse voltage rating of 45 V. The diodes are soldered with PV rails using lead-free, high melting point solder alloy. PV ribbons from PV module can be connected with junction box rails by a soldering process.
|
Description
|
Specifications
|
|
Rated Voltage
|
1000V DC
|
|
Rated Current
|
12A
|
|
Degree of Protection
|
IP 65
|
|
Safety Class
|
II
|
|
Type of Terminal
|
Soldering
|
|
Number of Diodes
|
3
|
|
Diode Rating
|
15 A / 20 A / 25 A
|
|
Contact Material
|
Copper with Tin Plating
|
|
Ambient Temperature
|
-40° C to +85° C
|
|
Application
|
250W to 310W
|
|
Connector
|
elmex Straight Connectors EMPV4 / EMPV4N
|
|
Locking System
|
Snap-In
|
