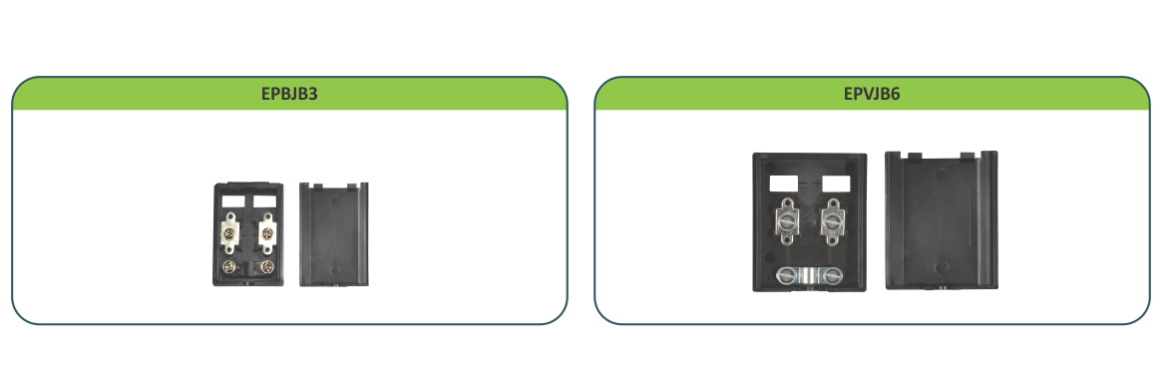

elmex PV Solar 2 - Rail Junction Boxes EPVJB3 & EPVJB6 are suitable for Solar Street Light Low Wattage (less than 50W) Panels. They are designed with sliding snap fit locking arrangement, available with 2 - in & 1 - out cable connections.
|
Description
|
Specifications EPVJB3
|
Specifications EPVJB6
|
|
Rated Voltage
|
1000V DC
|
1000V DC
|
|
Rated Current
|
3A
|
6A
|
|
Contact Material
|
Copper Alloy with Nickel and Tin Plating
|
Copper Alloy with Nickel and Tin Plating
|
|
Ambient Temperature
|
-40° C to +85° C
|
-40° C to +85° C
|
|
Safety Class
|
II
|
II
|
|
Application
|
3W to 20W
|
30W to 50W
|
|
Locking System
|
Sliding Snap Fit
|
Sliding Snap Fit
|
